Threaded panel-mount DC barrel power cable with 5.5×2.1mm female jack and stripped pigtail leads. Features locking nut and washer for secure chassis and panel installation, pure copper conductors and PVC jacket. Ideal for 12V/24V CCTV systems, industrial equipment enclosures, LED drivers and custom device power input wiring.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantité :

Categories: Câbles électriques spéciaux

Description

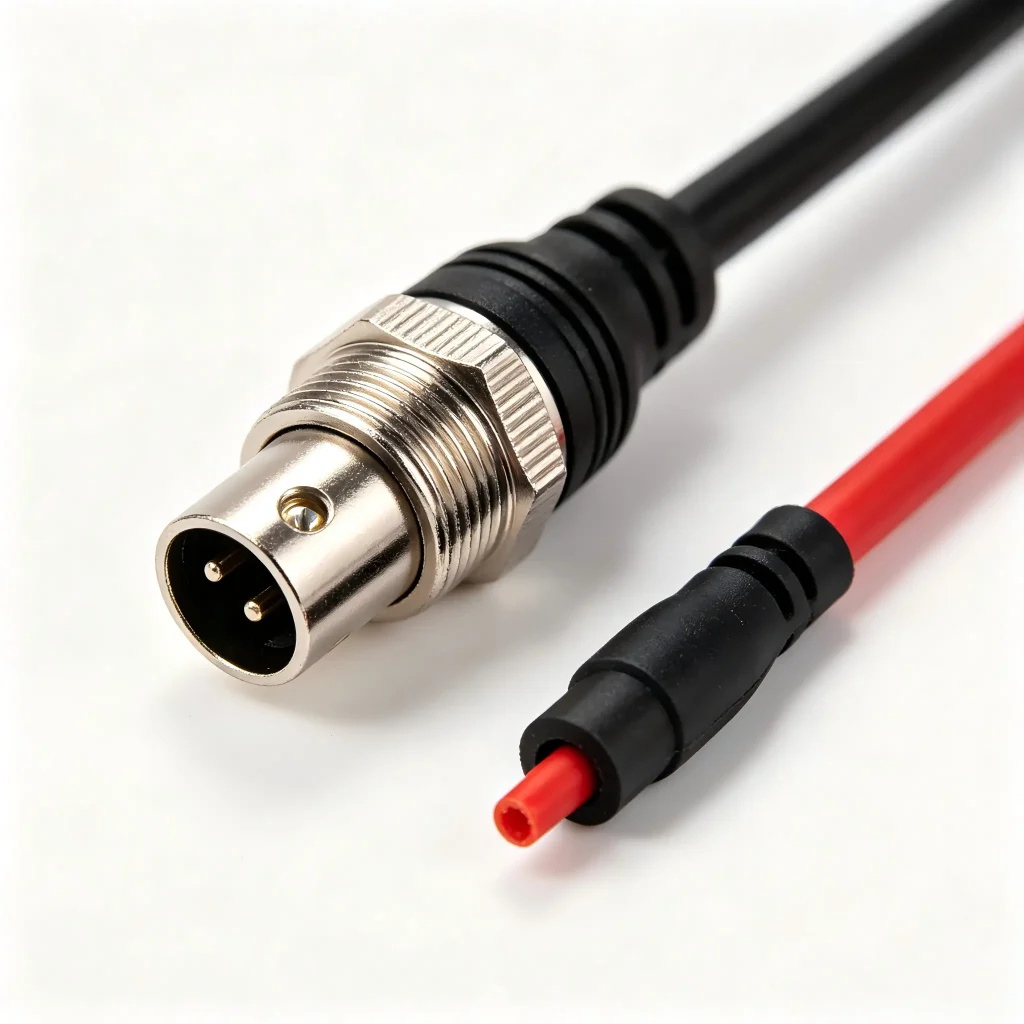

This panel-mount DC barrel power cable is designed for chassis and equipment panel installation, providing a secure and durable external DC power input interface for internal device wiring. It features a threaded 5.5×2.1mm female DC jack on one end that mounts through a panel cutout, and stripped tinned wire leads on the other end for direct connection to internal power boards, drivers or terminal blocks. It is widely used in security surveillance equipment, industrial control enclosures, LED lighting systems, smart home devices and custom electronics enclosures.

The DC jack end features a threaded barrel design with a hex fixing nut and sealing washer, allowing it to be securely mounted to equipment panels, chassis walls, junction boxes and enclosure surfaces. Once installed, the jack sits flush on the outside of the panel while the cable extends into the equipment interior, creating a clean, professional power input point that resists pulling, vibration and accidental disconnection. This design also protects the internal circuit board from wear caused by repeated plugging and unplugging of external power adapters.

Internally, the cable uses high-purity stranded copper conductors with red and black polarity identification for easy and accurate internal wiring. The standard 20AWG version is suitable for most 12V and 24V low-power applications including CCTV cameras, LED drivers and small industrial controllers. The 18AWG heavy-duty version is available for higher-current devices and longer internal wiring runs where lower voltage drop is required. Both versions are rated for typical low-voltage DC systems up to 30V.

The outer jacket is made of flexible PVC material with good abrasion resistance and insulation performance, suitable for indoor and protected enclosure environments. Optional waterproof versions with IP65/IP67 rating and dust caps are available for outdoor and harsh environment installations, providing additional protection against moisture, dust and vibration.

This panel-mount DC power cable is compatible with all standard 5.5×2.1mm DC power adapters and plugs. Standard cable lengths include 10cm, 15cm, 30cm and 50cm to suit different enclosure depths and internal wiring layouts. Custom sizes including 5.5×2.5mm and 3.5×1.35mm connector options, different wire gauges, lengths and jacket colors are available for bulk OEM orders.

Threaded panel-mount 5.5×2.1mm DC female jack with fixing nut and washer
Stripped tinned pigtail leads with red/black polarity identification
20AWG standard / 18AWG heavy-duty pure copper conductor options
Secure chassis installation, resists pulling, vibration and accidental disconnection
Protects internal circuit boards from repeated plugging wear
Suitable for 12V / 24V DC power systems
Compatible with CCTV, industrial enclosures, LED drivers and custom electronics
Standard lengths: 10cm / 15cm / 30cm / 50cm
Waterproof IP-rated versions and dust caps available
Custom connector size, gauge, length and color supported for bulk OEM orders

Specifications

Item	Specification
Connector Type	DC 5.5×2.1mm Female Jack (panel-mount threaded)
Termination End	Stripped & Tinned Pigtail Leads
Mounting Type	Threaded rear mount with hex fixing nut & washer
Panel Cutout	~12mm diameter (standard threaded version)
Conductor Material	High-Purity Stranded Copper
Standard Wire Gauge	20AWG
Heavy-Duty Wire Gauge	18AWG
Conductor Polarity	Red (Positive) / Black (Negative)
Jacket Material	PVC
Rated Voltage	Up to 30V DC
Rated Current	Up to 5A (20AWG) / Up to 8A (18AWG)
Standard Lengths	10cm / 15cm / 30cm / 50cm
Waterproof Option	IP65 / IP67 rated version available with dust cap
Color Options	Black jacket, custom colors optional
Application	CCTV enclosure, industrial chassis, LED driver, junction box, custom electronics
Custom Service	Connector size, wire gauge, length, waterproof rating, color, logo, OEM bulk orders

FAQ

Q: What is a panel-mount DC barrel power cable used for?

A: It provides a secure external DC power input interface on equipment panels and chassis, with internal pigtail leads for connecting to power boards, drivers and terminal blocks inside the device.

Q: How is it installed?

A: It mounts through a drilled panel cutout. The threaded jack passes through the hole from the outside, and a hex nut on the inside tightens to secure it firmly to the panel.

Q: What connector size is standard?

A: The standard size is 5.5×2.1mm, the most common DC barrel interface. 5.5×2.5mm and 3.5×1.35mm sizes are available for bulk orders.

Q: Can I use this for 12V and 24V devices?

A: Yes, it is designed for low-voltage DC systems and is suitable for 12V, 24V and other DC voltages up to 30V within the current rating.

Q: Is there a waterproof version?

A: Yes, IP65 and IP67 rated versions with dust caps are available for outdoor and harsh environment installations.

Q: What lengths are available?

A: Standard lengths include 10cm, 15cm, 30cm and 50cm. Custom lengths are available for bulk OEM orders.

Q: Do you support custom orders?

A: Yes, we support custom connector sizes, wire gauges, cable lengths, waterproof ratings, jacket colors and private-label packaging for bulk OEM orders.
